Star Wiper
Star Wiper Lip Type
Product Details
Constituent Materials
-

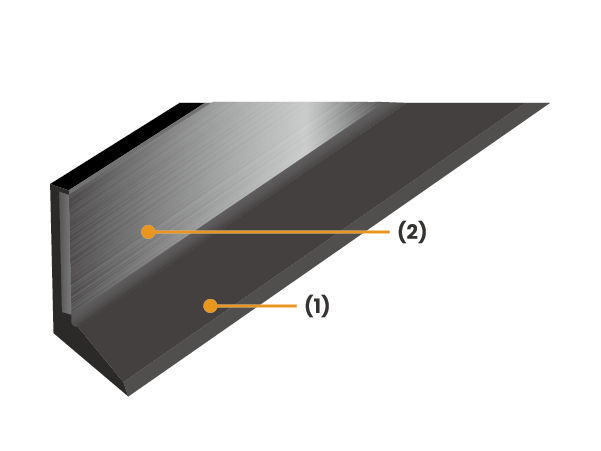

FV(straight)
(1) NBR rubber
(2) Steel plate
Black anti-corrosion treatment on surface -

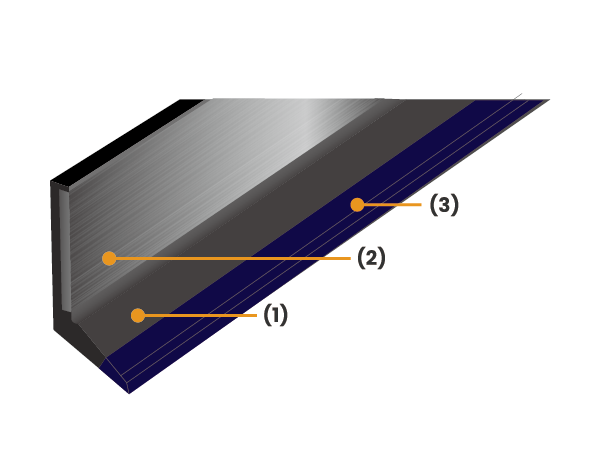

FVL(low sliding resistance)
(1) NBR rubber
(2) Steel plate
Black anti-corrosion treatment on surface(3) Special compounded rubber
Lowering the coefficient of friction and reducing sliding resistance
Features
-
- Contributes to maintaining the machining accuracy of machine tools that require high-precision machining.
- Uses NBR rubber that is oil-resistant and abrasion-resistant, and is highly durable.
- The surface of the steel plate is treated with a rust-proofing agent that complies with RoHS regulations.
- We also offer additional processing such as drilling and cutting.
Application Example
Suitable for wiping areas with curved surfaces.
Specification
| Type | Product number | Sheet Metal Length |
|---|---|---|
|
FV |
FV-22-650 |
650 mm |
|
FV-22-1200 |
1200 mm |
|
| FVL (low sliding resistance ) |
FVL-21.5-650 |
650 mm |
|
FVL-21.5-1000 |
1000 mm |

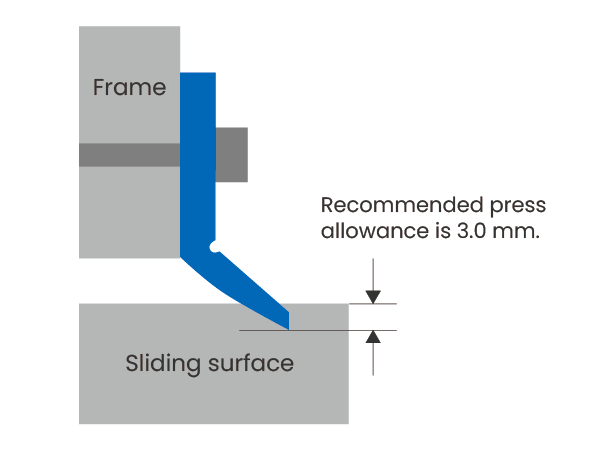

Recommended pressing allowance: 3.0mm
Caution
- Please make design considering a press allowance of 3.0mm on the part drawing.
- Confirm on assembly drawings, etc. that a press allowance of 3.0mm overlaps with the steel plate.
